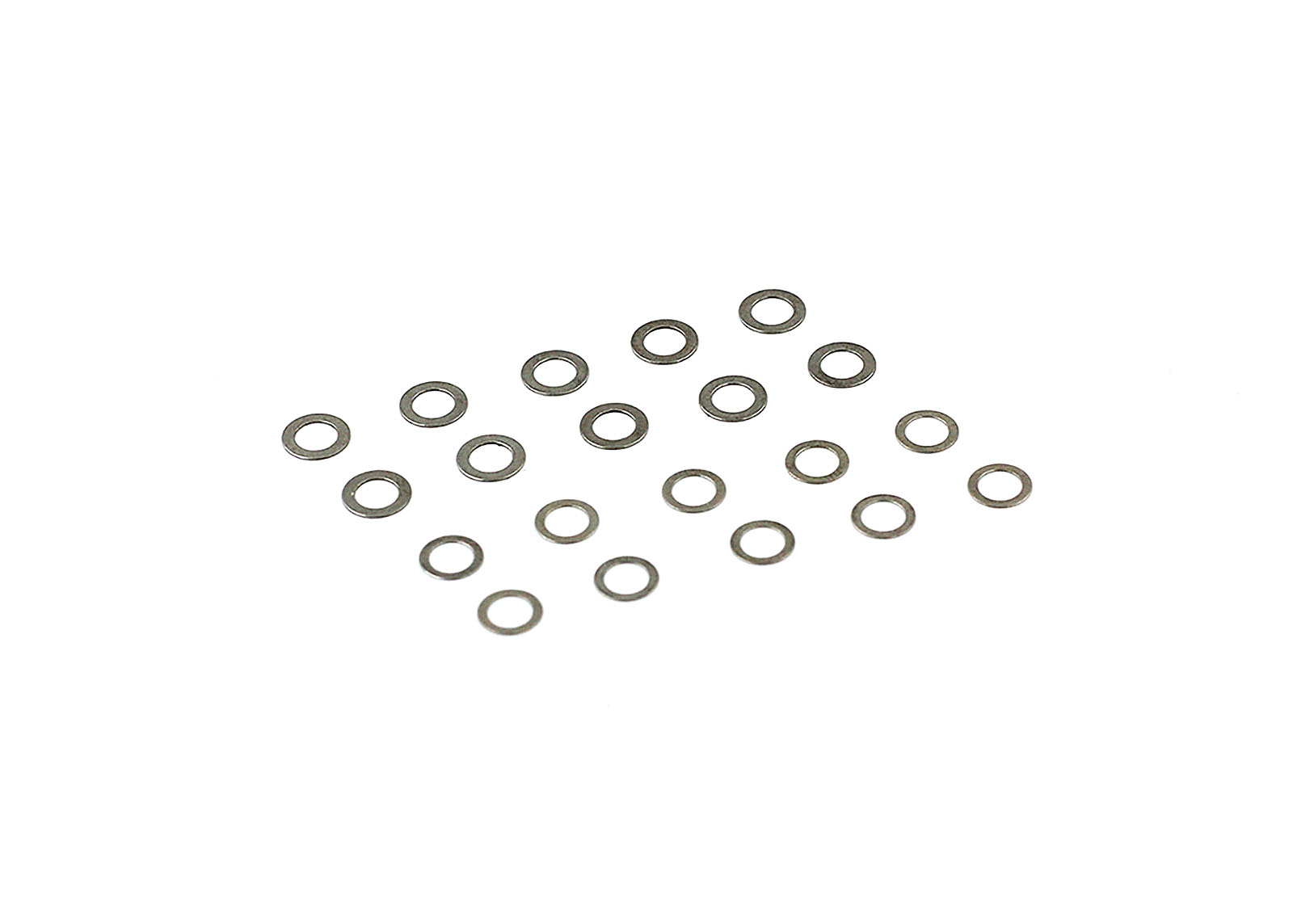

• Gearbox Shim Set (2 mini types: 20pcs in total)


Material Stainless Steel


Modify Advanced AEG Shim Set

The small outer diameter and available in 2 gauges to minimize friction between ball bearings to increase durability.

Precisely shimming the gearbox minimizes the up-and-down play of gears to reduce noise and enhance smooth operation, as well as inter-gear efficiency to reduce load.

  1. To adjust the gap between the gears and gearbox housing.
  2. To adjust the gap or height between the 3 gears (sector gear, spur gear, and bevel gear) to minimize friction against the gearbox.

Gears must not be shimmed too tightly to avoid over-stressing the motor resulting in damage.


Why Shim the Gearbox?

  1. To prevent gears from rubbing any other part of the gearbox, where contact should only occur between the gear shafts and the ball bearings, the cogs of the gears, the sector gear and the piston, the cam of the sector gear and the cut-off lever; the sector gear and the tappet plate.
  2. To reduce friction between gears and ball bearings. To reduce friction between gear wheel sides and gearbox, high-quality AEG shims of the suitable gauge must be used to enable adjustment of the gear gap for minimal friction.
  3. To adjust gears to achieve maximized direct contact against cogs of another gear so as to realize optimal torque transfer between gear and piston as well as cam of tappet plate and cut-off lever.
